CLICK & FIT Wallbox 7.4kW EV Charger 5m Wall Connector
$2,200.00
(Excl. GST)
SKU:
WALLBOX
Price includes installation & certification by a licenced electrician - Order a Click & Fit today!
Product Details:
Wallbox Pulsar Plus was created to give your electric vehicle a powerful smart charger in an incredibly small size. It is perfect for daily use at home. Its compact
dimensions and minimalist design fit any garage and is enhanced by multiple functions found on the myWallbox app.
dimensions and minimalist design fit any garage and is enhanced by multiple functions found on the myWallbox app.
Compatible with your EV
Pulsar Plus is available with type 1 and type 2 charging cables.
Pulsar Plus is available with type 1 and type 2 charging cables.
Durability
Safely install and use your charger indoors or outdoors.
Safely install and use your charger indoors or outdoors.

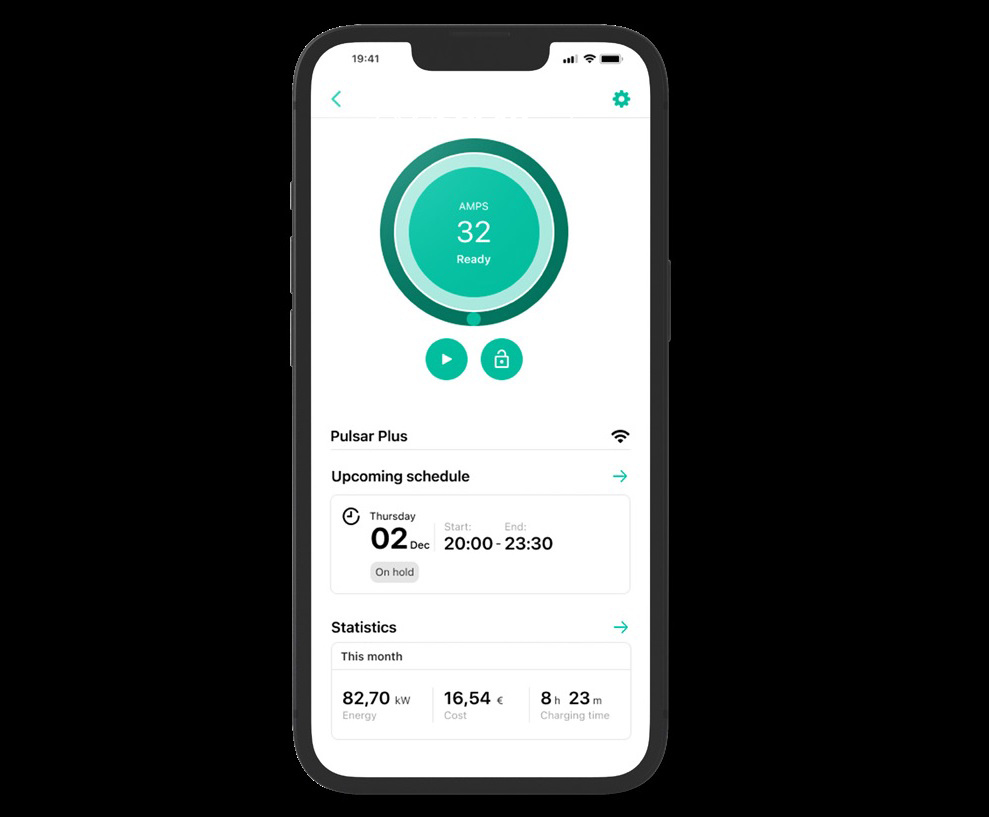

The Pulsar Plus is powered by the myWallbox app
• Manage charging and monitor the charge status
• Set and change charging schedules to benefit from off-peak energy rates
• Remote locking and unlocking
• Real-time charging statistics
• Real-time notifications
• Manage charging and monitor the charge status
• Set and change charging schedules to benefit from off-peak energy rates
• Remote locking and unlocking
• Real-time charging statistics
• Real-time notifications
3-year warranty
Developed and manufactured in Europe, Pulsar Plus is designed to last.
Developed and manufactured in Europe, Pulsar Plus is designed to last.

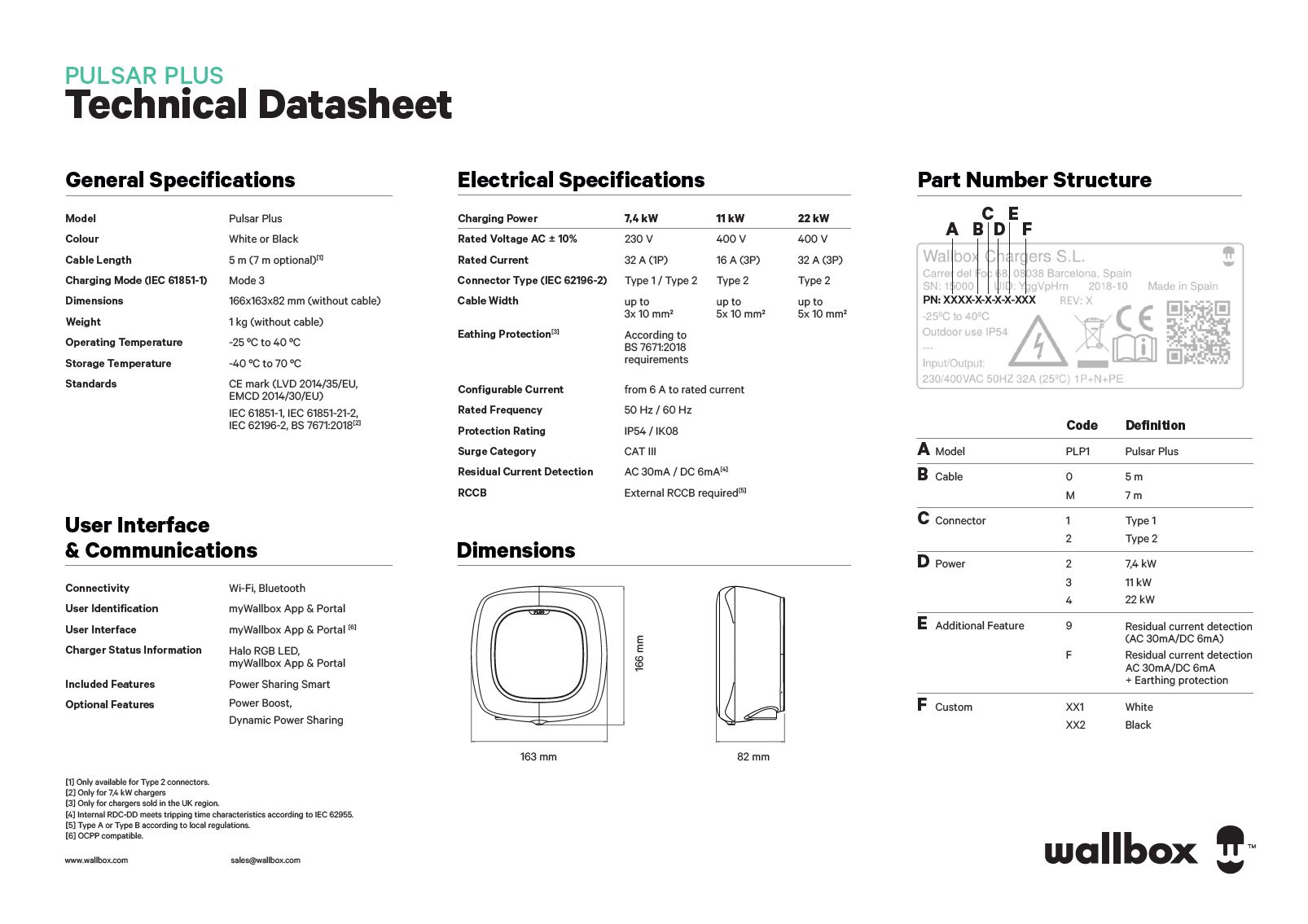

GENERAL SPECIFICATIONS
Colour: White or Black
Charging mode: Mode: 3
Dimensions: 166x163x82 mm
(without cable)
Weight: 1 kg (without cable)
Cable length: 5 m (7m optional)
Colour: White or Black
Charging mode: Mode: 3
Dimensions: 166x163x82 mm
(without cable)
Weight: 1 kg (without cable)
Cable length: 5 m (7m optional)
CONNECTIVITY & USER INTERFACE
Connectivity: Wi-Fi / Bluetooth
User Identification: myWallbox app & portal
User Interface: myWallbox app & portal
Charger Status: RGB LED / myWallbox app & portal
Included Features: Power Sharing
Optional Features: Power Boost /
(available for Dynamic Power Sharing /
Pulsar Plus): MID Meter
Communication OCPP 1.6j / myWallbox
ELECTRICAL SPECIFICACTIONS
Maximum 7,4 kW (1Phase)
Charging Power: 22 kW (3Phase)
Rated Voltage 220 V to 240 V (7,4kW)
AC±10%: 400 V (11kW and 22kW)
Rated Current: 32 A (7,4 kW - 1Phase) /
16 A (11 kW - 3Phase) /
32 A (22 kW - 3Phase)
Connector type: Type 1 or Type 2
Cable Section: 5 x 10 mm²
Configurable from 6 A to rated current
Protection Rating: IP54 / IK08
Residual Current DC 6 mA
Maximum 7,4 kW (1Phase)
Charging Power: 22 kW (3Phase)
Rated Voltage 220 V to 240 V (7,4kW)
AC±10%: 400 V (11kW and 22kW)
Rated Current: 32 A (7,4 kW - 1Phase) /
16 A (11 kW - 3Phase) /
32 A (22 kW - 3Phase)
Connector type: Type 1 or Type 2
Cable Section: 5 x 10 mm²
Configurable from 6 A to rated current
Protection Rating: IP54 / IK08
Residual Current DC 6 mA
Why Choose Click & Fit?
Click & Fit is a great way for you to shop for your solar PV system repair online and get it installed by a local licensed electrician. Giving you a premium service at a great price!
Click & Fit takes away the hassle of not knowing how much installation will cost and brings all the right information direct to you, saving you from losing your lunch break just to get a quote.
On top of loading, you with the right information, we have a dedicated team of solar system specialists, installation specialist and technical engineers. All who work on our online chat and phone line, ensuring you get the best service when you order.
To guarantee the best service, when you purchase using Click & Fit, we assign a technical specialist to your online order. They will go over the details you provide to ensure your selected inverter is compatible with your system.
If you want to repair your solar system, Click & Fit will save you time & money, it's super easy!
*Installation price includes garage installation for a single level property, cabling 7m from main switchboard*
*Melbourne/Geelong metro areas serviced only - Call to confirm regional area installation prior to ordering*
